32 Channel NVR 16 SATA Ports

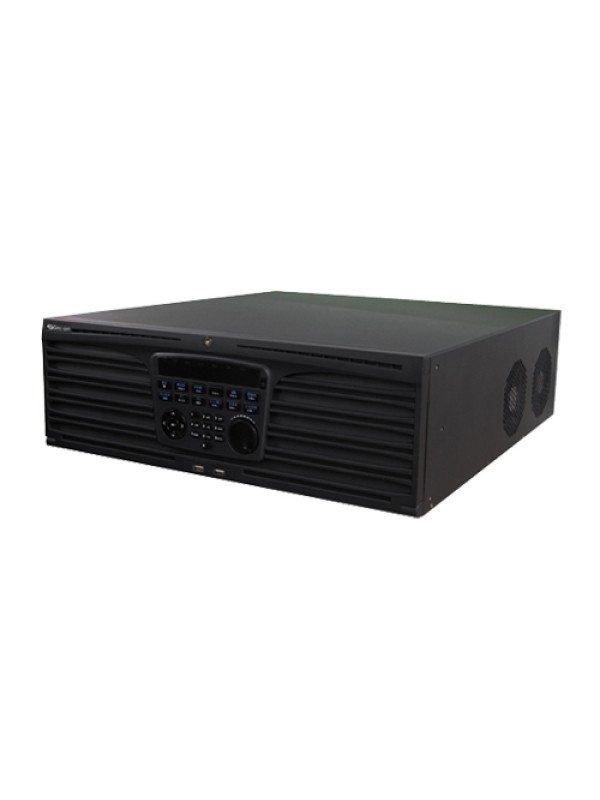

Sec-on 32 Channel NVR 16 SATA Ports
- 32 channel camera recording
- Two-way audio support
- 16 SATA ports, 6 TB capacity per disk
- RS-232, RS-485 interface
- HDMI (4K support) and VGA,2x USB 2.0,1 x USB 3.0
- RAID0, RAID1, RAID5, RAID6, RAID10 support
Video | |
Number of Channels | 32 channel |
Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Network | |
Band Width | 320 Mbps/256 Mbps |
Hard Disk | |
Kapasite | 500GB/1TB/2TB/3TB/4TB/5TB/6TB |
Interface Unit | |
Alarm Input/ Output | 16/8 |
External interface | |
USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
General Features | |
Case | 19-inch rack-mounted 3U chassis |
Consumption | ≤ 45 W |
Power | 300W |
Power Supply | 100 to 240 VAC, 50 to 60 Hz |
Operating Temperature | -10+55° C |
Dimension | 445 × 496 × 146mm |
Weight | 12.5kg |
